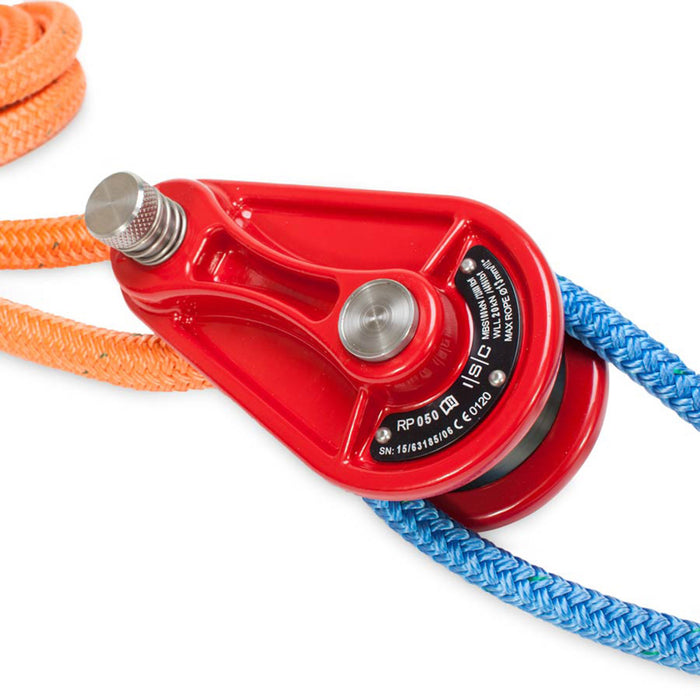

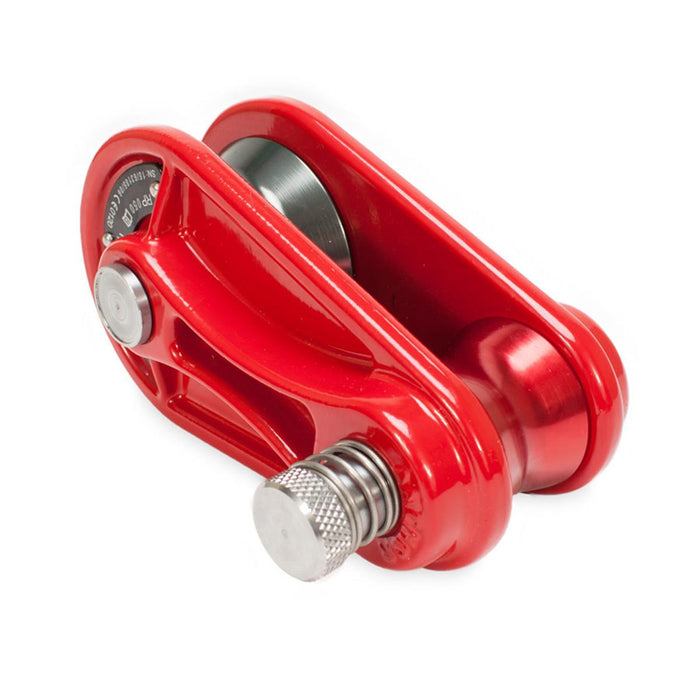

The new Compact Rigging Pulley offers a highly impressive strength to weight ratio with an 100kN (22000lbs) MBS and a WLL of 20kN (4400lbs).
The Pulley plates are made from hot forged Aluminum and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity.

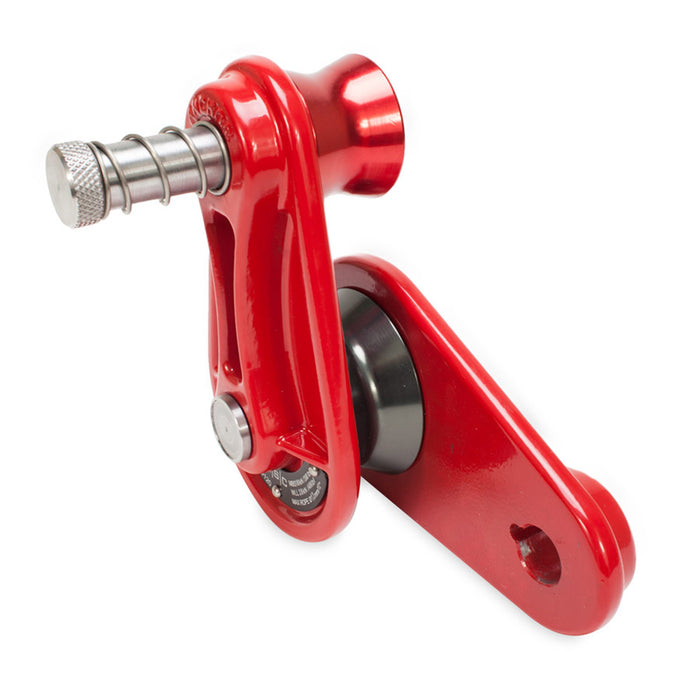

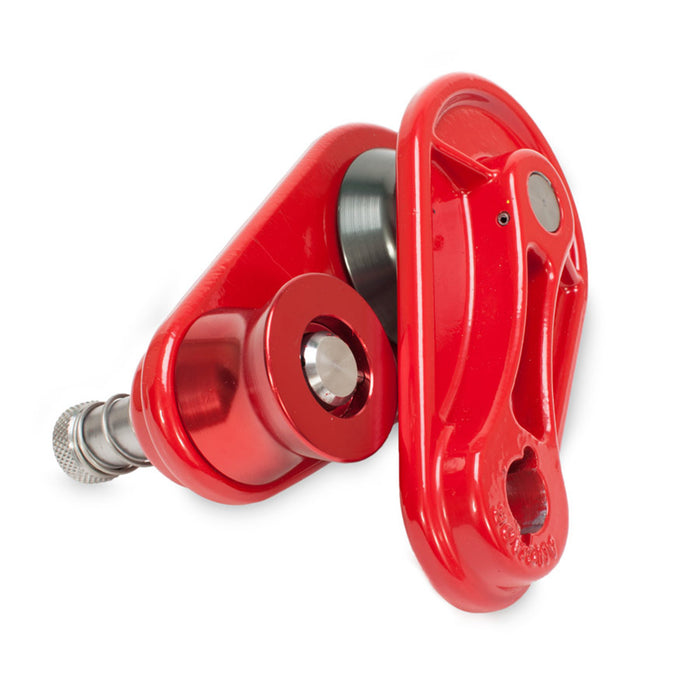

The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.
Technical Data
Approved standards CE 0120
| SKU: |
8522 |
| Material: |
Aluminum |
| MBS (kN/lbs): |
100kN/22,000lbs |
| WLL (kN/lbs): |
20kN/4,400lbs |
| Max Working Line Size: |
1/2" / 13mm (45kN/9,900lbs)** |
| Topping Strop Size (MBS)*: |
3/4" / 19mm (106kN/23,400lbs)** |
*Above figures based on using Yale Polydyne or Double Esterlon rope.
**Above figures based on using Yale Portland braid and 16mm dead eye sling.
View Datasheet
View Product Instructions
Technical Data
Approved standards CE 0120
| SKU: |
8521 |
| Material: |
Aluminum |
| MBS (kN/lbs): |
85kN/19,000lbs |
| WLL (kN/lbs): |
17kN/3,800lbs |
| Max Working Line Size: |
1/2" / 13mm (38kN/8,500lbs)** |
| Topping Strop Size (MBS)*: |
5/8" / 16mm (74kN/16,650lbs)** |
| SKU: |
8522 |
| Material: |
Aluminum |
| MBS (kN/lbs): |
100kN/22,000lbs |
| WLL (kN/lbs): |
20kN/4,400lbs |
| Max Working Line Size: |
1/2" / 13mm (45kN/9,900lbs)** |
| Topping Strop Size (MBS)*: |
3/4" / 19mm (106kN/23,400lbs)** |
| SKU: |
8523 |
| Material: |
Aluminum |
| MBS (kN/lbs): |
100kN/22,000lbs |
| WLL (kN/lbs): |
20kN/4,400lbs |
| Max Working Line Size: |
5/8" / 16mm (77kN/17,000lbs)** |
| Topping Strop Size (MBS)*: |
1" / 25mm (172kN/37,800lbs)** |
| SKU: |
8524 |
| Material: |
Aluminum |
| MBS (kN/lbs): |
150kN/33,000lbs |
| WLL (kN/lbs): |
30kN/6,600lbs |
| Max Working Line Size: |
5/8" / 16mm (77kN/17,000lbs)** |
| Topping Strop Size (MBS)*: |
1" / 25mm (172kN/37,800lbs)** |
| SKU: |
8525 |
| Material: |
Aluminum |
| MBS (kN/lbs): |
150kN/33,000lbs |
| WLL (kN/lbs): |
30kN/6,600lbs |
| Max Working Line Size: |
3/4" / 19mm (106kN/46,800lbs)** |
| Topping Strop Size (MBS)*: |
1 1/8" / 29mm (213kN/46,800lbs)** |
| SKU: |
8527 |
| Material: |
Aluminum |
| MBS (kN/lbs): |
200kN/44,000lbs |
| WLL (kN/lbs): |
40kN/8,800lbs |
| Max Working Line Size: |
3/4" / 19mm (106kN/46,800lbs)** |
| Topping Strop Size (MBS)*: |
1 1/8" / 29mm (213kN/46,800lbs)** |
| SKU: |
8526 |
| Material: |
Steel |
| MBS (kN/lbs): |
100kN/22,000lbs |
| WLL (kN/lbs): |
20kN/4,400lbs |
| Max Working Line Size: |
5/8" / 16mm (172kN/17,000lbs)** |
| Topping Strop Size (MBS)*: |
1" / 25mm (172kN/37,800lbs)** |
*Above figures based on using Yale Polydyne or Double Esterlon rope.
**Above figures based on using Yale Portland braid and 16mm dead eye sling.
